1SDA066325R1

1SDA066325R1
1SDA066325R1

Giá: Liên hệ

Mã sản phẩm: 1SDA066325R1

SOR-C XT1..XT4 F/P 220-240Vac-220-250Vdc

General Information

  • Extended Product Type:
    SOR-C XT1..XT4 F/P 220-240Vac-220-250Vdc
  • Product ID:
    1SDA066325R1
  • EAN:
    8015644692193
  • Catalog Description:
    SOR-C XT1..XT4 F/P 220-240Vac-220-250Vdc
  • Long Description:

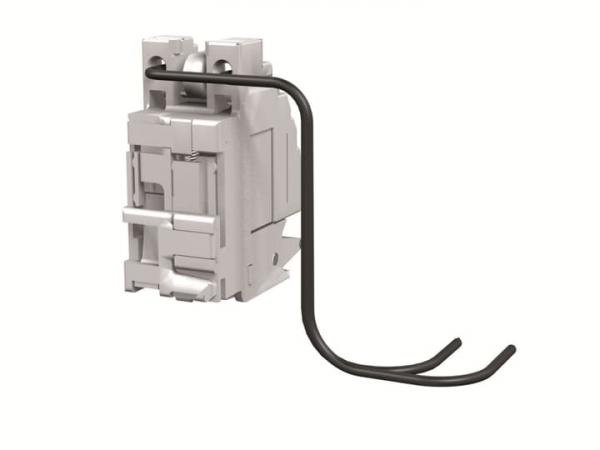

    SHUNT OPENING RELEASE WIRED 220-240V AC-220-250V DC FOR FIXED-PLUG-IN XT1..XT4

Categories

  • Products » Low Voltage Products and Systems » Circuit Breakers » Moulded Case Circuit Breakers » Accessories for Tmax XT

Ordering

  • E-Number (Sweden):
    3182061
  • EAN:
    8015644692193
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362090

Dimensions

  • Product Net Width:
    110 mm
  • Product Net Height:
    60 mm
  • Product Net Depth / Length:
    140 mm
  • Product Net Weight:
    0,114 kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    110 mm
  • Package Level 1 Height:
    60 mm
  • Package Level 1 Depth / Length:
    140 mm
  • Package Level 1 Gross Weight:
    0,12 kg
  • Package Level 1 EAN:
    8015644692193

Additional Information

  • Configuration Type:
    Loose or configurable
  • Current Type:
    AC/DC
  • Order Multiple:
    1 piece
  • Product Main Type:
    Accessories for Tmax XT
  • Product Name:
    Accessory
  • Product Type:
    ACC
  • Rated Voltage (Ur):
    220 ... 240 V AC
    220 ... 250 V DC
  • Standards:
    IEC 60947-2
  • Suitable For:
    XT1, XT2, XT3, XT4
  • Suitable for Product Class:
    SACE Tmax XT

Certificates and Declarations (Document Number)

Classifications

  • ETIM 6:
    EC002483 - Switch spool for power circuit breaker
  • ETIM 7:
    EC002483 - Switch spool for power circuit breaker
  • Object Classification Code:
    Q
  • UNSPSC:
    39120000
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
